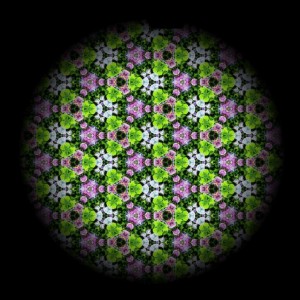

点击图像打开实例文件。操作提示：点击用来变化万花筒图案。

使用遮罩的主类：

package{
	import flash.display.GradientType;
	import flash.display.Shape;
	import flash.display.Sprite;
	import flash.events.MouseEvent;
	import flash.geom.Matrix;

	import net.everyinch.kals.KaleidoscopeThreeMirrors;

	[SWF(width=800,height=600,backgroundColor=0x000000)]
	public class KaleidoscopeThreeMirrorsTest2 extends Sprite{
		private var kal:KaleidoscopeThreeMirrors;
		private var radius:Number = 260;
		private var container:Sprite;
		private var maskShape:Shape;
		private var gradientShape:Shape;

		public function KaleidoscopeThreeMirrorsTest2(){
			kal = new KaleidoscopeThreeMirrors("assets/Flower0.jpg",60,radius);
			container = new Sprite();
			container.x = 100;
			container.y = 10;
			addChild(container);
			container.addChild(kal);

			maskShape = new Shape();
			addChild(maskShape);
			maskShape.graphics.beginFill(0xffffff,1);
			maskShape.graphics.drawCircle(0,0,radius);
			maskShape.graphics.endFill();
			maskShape.x = 400;
			maskShape.y = 300;
			container.mask = maskShape;

			gradientShape = new Shape();
			addChild(gradientShape);
			gradientShape.x = 400;
			gradientShape.y = 300;
			var matrix:Matrix = new Matrix();
			var colors:Array = [0x000000,0x000000];
			var alphas:Array = [0,1];
			var ratios:Array = [150,255];
			matrix.createGradientBox(radius*2,radius*2,0,-radius,-radius);
			gradientShape.graphics.lineStyle();
			gradientShape.graphics.beginGradientFill(GradientType.RADIAL,colors,alphas,ratios,matrix);
			gradientShape.graphics.drawCircle(0,0,radius);
			gradientShape.graphics.endFill();

			stage.addEventListener(MouseEvent.MOUSE_DOWN,onMouseDown);
		}

		private function drawMaskAndGradient():void{



		}

		private function onMouseDown(e:MouseEvent):void{
			kal.doSpin();
		}
	}
}

转载请注明：陈童的博客 » 使用遮罩方法美化：万花筒之等边三角形镜面反射
